【IMC(CIH)型不銹鋼磁力泵】產品：

【IMC(CIH)型不銹鋼磁力泵】產品簡介：

IMC(CIH)型磁力傳動離心泵是我公司最新研究開發的新型完全無泄漏耐腐蝕泵，其技術指標與國外同類產品水平相當。性能、尺寸和標記符合ISO2858/GB5662/DIN24256標準。外形安裝尺寸與IH型泵一致，方便用戶
IMC(CIH)型磁力傳動離心泵適用與石油、化工、環保、制藥、食品、造紙、印染、電鍍、污水處理等行業，是易燃、易爆、易汽化、有毒、稀有貴重和各種和各種腐蝕液體輸送的理想設備。

IMC(CIH) series magnetic-force drive centrifugal pump is a new type entirely non-leakage erosion-proof pump developed by our company, its technology reaches the level of the con-generic products from overseas, and the capability, dimension and mark are in conformity with ISO2858/GB5662/DIN24256. Its external installation dimension is the same with that of IH type pump, and is convenient to replace and use.
IMC(CIH) series magnetic-force drive centrifugal pump is applied in the fields such as petroleum, chemicals, environ-mental protection, pharmacy, foodstuff, papermaking, printingand dyeing, electroplating, sewage treatment etc., and is the ideal equipment to transfer the flammable, explosive, easily-evaporization, poisonous, rare or erosive liquids.

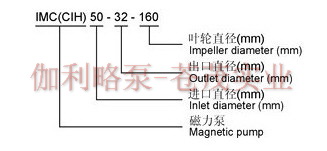

【IMC(CIH)型不銹鋼磁力泵】型號意義：

【IMC(CIH)型不銹鋼磁力泵】性能參數：

型號	流量 Q (m^3/h)	揚程 H (m)	轉速 n (r/min)	軸功率 Pa (kw)	效率 η (%)	氣蝕余量 (NPSH)r m	配帶電動機型號功率
							輸送介質比重 g/cm^3
							≤1	≤1.3	≤1.84
IMC50-32-125	7.5 12.5 15	22 20 18.5	2900	1.49 1.62 1.63	30 42 43	3.5 3.5 4.0	Y YB90L-2 2.2	Y YB100L-2 3.0	Y YB112M-2 4.0
IMC50-32-160	7.5 12.5 15	34 32 29	2900	2.48 2.79 2.96	28 39 40	3.5 3.5 4.0	Y YB100L-2 3.0	Y YB112M-2 4.0	Y YB132S1-2 5.5
IMC50-32-200	7.5 12.5 15	52.5 50 48	2900	5.10 5.49 6.13	21 31 32	2.5 2.5 3.0	Y YB132S2-2 57.5	Y YB132S2-2 7.5	Y YB160M1-2 11
IMC50-32-250	7.5 12.5 15	22 20 18.5	2900	9.57 10.89 13.32	17.5 25 26	3.5 3.5 4.0	Y YB160M2-2 15	Y YB160L-2 18.5	Y YB180M-2 22
IMC65-50-125	15 25 30	22 20 18.5	2900	2.25 2.67 2.91	40 51 52	3.5 3.5 4.0	Y YB100L-2 3.0	Y YB112M-2 4.0	Y YB132S1-2 5.5
IMC65-50-160	15 25 30	34 32 29.5	2900	4.34 5.07 5.48	32 43 44	3.5 3.5 4.0	Y YB132S1-2 5.5	Y YB132S2-2 7.5	Y YB160M1-2 11
IMC65-40-200	15 20 30	53 50 47	2900	8.66 9.20 10.1	25 37 38	3.5 3.5 4.0	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L1-2 18.5
IMC65-40-250	15 25 30	82 80 78.5	2900	13.4 14.72 16.88	25 37 38	3.5 3.5 4.0	Y YB160L-2 18.5	Y YB180M-2 22	Y YB200L1-2 30
IMC65-40-315	15 25 30	127 125 123	2900	27.33 27.44 30.44	19 31 33	3.5 3.5 4.0	Y TB200l2-2 37	Y YB225M-2 45	Y YB280S-2 75
IMC80-65-125	30 50 60	22.5 20 18	2900	4.48 5.24 5.55	41 52 53	4.0 4.0 4.5	Y YB132S1-2 5.5	Y YB132S2-2 7.5	Y YB160M1-2 11
IMC80-65-160	30 50 60	34 32 29	2900	7.72 9.08 9.67	36 48 49	4.0 4.0 4.5	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L1-2 18.5
IMC80-50-200	30 50 60	53 50 47	2900	12.03 14.80 16.34	36 46 47	4.0 4.0 4.5	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L1-2 18.5
IMC80-50-250	30 50 60	84 80 75	2900	19.06 23.68 26.07	36 46 47	4.0 4.0 4.5	Y YB200L1-2 30	Y YB200L2-2 37	Y YB225M-2 45
IMC80-50-315	30 50 60	128 125 123	2900	36.05 40.56 44.75	29 42 45	4.0 4.0 4.5	Y YB250M-2 55	Y YB280S-2 15	Y YB280M-2 90
IMC100-80-125	60 100 120	23 20 16.5	2900	8.35 9.73 9.46	45 56 57	4.0 4.0 4.5	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L-2 18.5
IMC100-80-160	60 100 120	35 32 28	2900	12.43 15.85 16.34	46 55 56	4.0 4.0 4.5	Y YB160L-2 18.5	Y YB180M-2 22	Y YB200L1-2 30
IMC100-65-200	60 100 120	54 50 47	2900	21.01 25.69 28.44	42 53 56	4.0 4.0 4.5	Y YB200L1-2 30	Y YB200L2-2 37	Y YB225M-2 45
IMC100-65-250	60 100 120	89 80 74.5	2900	37.98 45.39 49.69	37 48 49	4.0 4.0 4.5	Y YB255M-2 45	Y YB250M-2 55	Y YB280S-2 75

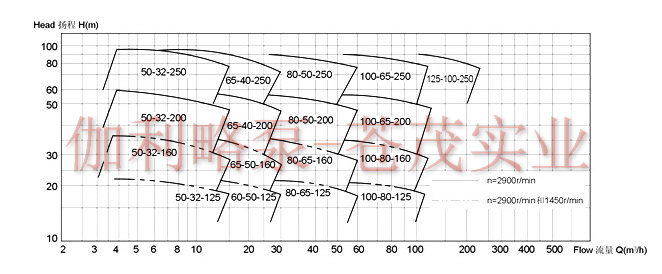

【IMC(CIH)型不銹鋼磁力泵】型譜圖：?

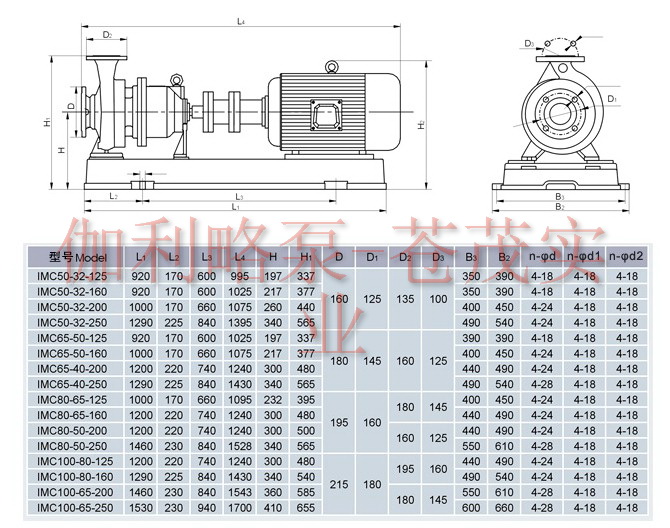

【IMC(CIH)型不銹鋼磁力泵】安裝尺寸圖：?

伽利略Galileo品牌

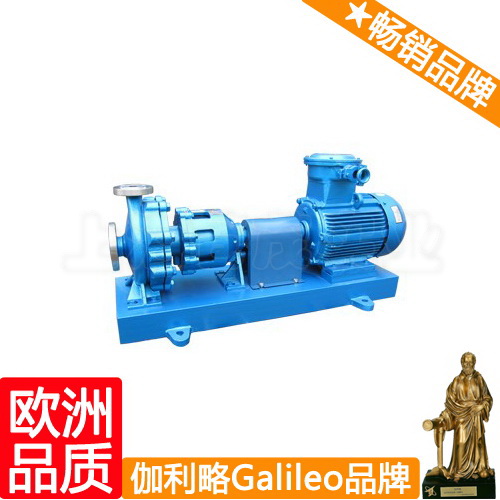

IMC(CIH)型不銹鋼磁力泵
